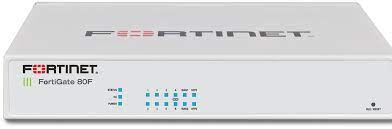

FortiGate FortiWiFi 80F Series

Key Features:

Converged Next-Generation Firewall (NGFW) and SD-WAN

FortiGate FortiWiFi 80F automatically controls, verifies, and facilitates user access to applications, delivering consistency with a seamless and optimized user experience.

Gartner Magic Quadrant Leader
for both Network Firewalls and SD-WAN.
• Security-Driven Networking
with FortiOS delivers converged networking and security..
• Unparalleled Performance
with Fortinet’s patented SoC processors.
Enterprise Security
with consolidated AI / ML-powered FortiGuard Services.
Simplified Operations
with centralized management for networking and security, automation, deep analytics, and self-healing.

Product Details

SPECIFICATIONS

                                                        FG-80F FG-81F FG-80F-BYPASS FG-80F-POE FG-81F-POE
Interfaces and Modules
GE RJ45/SFP Shared Media Pairs 2 2 2 2 2
GE RJ45 Internal Ports 6 6 6
GE RJ45 FortiLink Ports (Default) 2 2 2
GE RJ45 PoE/+ Ports 6 6
GE RJ45 PoE/+ FortiLink Ports (Default) 2 2
Bypass GE RJ45 Port Pair (WAN1 & Port1, default configuration) Yes
Wireless Interface
USB Ports 3.0 1 1 1 1 1
Console (RJ45) 1 1 1 1 1
Internal Storage 1x 128 GB SSD 1x 128 GB SSD
Trusted Platform Module (TPM) Yes Yes Yes Yes Yes
Bluetooth Low Energy (BLE) Yes Yes Yes Yes Yes
System Performance — Enterprise Traffic Mix
IPS Throughput 2 1.4 Gbps
NGFW Throughput 2, 4 1 Gbps
Threat Protection Throughput 2, 5 900 Mbps
System Performance and Capacity
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) 10 / 10 / 7 Gbps
Firewall Latency (64 byte, UDP) 3.23 μs
Firewall Throughput (Packet per Second) 10.5 Mpps
Concurrent Sessions (TCP) 1.5 Million
New Sessions/Second (TCP) 45 000
Firewall Policies 5000
IPsec VPN Throughput (512 byte)1 6.5 Gbps
Gateway-to-Gateway IPsec VPN Tunnels 200
Client-to-Gateway IPsec VPN Tunnels 2500
SSL-VPN Throughput 950 Mbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) 200
SSL Inspection Throughput (IPS, avg HTTPS)3 715 Mbps
SSL Inspection CPS (IPS, avg. HTTPS)3 700
SSL Inspection Concurrent Session (IPS, avg HTTPS)3 100 000
Application Control Throughput (HTTP 64K)2 1.8 Gbps
CAPWAP Throughput (HTTP 64K) 9 Gbps
Virtual Domains (Default / Maximum) 10 / 10
Maximum Number of FortiSwitches Supported 24
Maximum Number of FortiAPs (Total /Tunnel) 96 / 48
Maximum Number of FortiTokens 500
High Availability Configurations Active-Active, Active-Passive, Clustering

Note: All performance values are “up to” and vary depending on system configuration.
1 IPsec VPN performance test uses AES256-SHA256.
2 IPS (Enterprise Mix), Application Control, NGFW and Threat Protection are measured
with Logging enabled.
3 SSL Inspection performance values use an average of HTTPS sessions of different
cipher suites.
4 NGFW performance is measured with Firewall, IPS and Application Control enabled.
5 Threat Protection performance is measured with Firewall, IPS, Application Control and
Malware Protection enabled.

                                                  FG-80F FG-81F FG-80F-BYPASS FG-80F-POE FG-81F-POE
Dimensions and Power
Height x Width x Length (inches) 1.6 x 8.5 x 7.0 1.6 x 8.5 x 7.0 1.6 x 8.5 x 7.0 2.4 x 8.5 x 7.0 2.4 x 8.5 x 7.0
Height x Width x Length (mm) 40 x 216 x 178 40 x 216 x 178 40 x 216 x 178 60 x 216 x 178 60 x 216 x 178
Weight 2.4 lbs (1.1 kg) 2.4 lbs (1.1 kg) 2.6 lbs (1.2 kg) 3.1 lbs (1.4 kg) 3.1 lbs (1.4 kg)
Form Factor (supports EIA/non-EIA standards) Desktop/ Wall Mount/ Rack Tray
Operating Environment and Certifications
Input Rating 12V DC, 3A (dual redundancy optional) 12V DC, 3A (dual redundancy optional) 12V DC, 3A (dual redundancy optional) +54V DC, 3A (dual redundancy optional) +54V DC, 3A (dual redundancy optional)
Power Required (Redundancy Optional) Powered by up to 2 External DC Power Adapters (1 adapter included), 100–240V AC, 50/60 Hz
Maximum Current 115VAC/0.4A, 230VAC/0.2A 115VAC/0.4A, 230VAC/0.2A 115VAC/0.4A, 230VAC/0.2A 115VAC/2.2A, 230VAC/1.1A 115VAC/1.2A, 230VAC/0.6A
Total Available PoE Power Budget* 96W 96W
Power Consumption (Average / Maximum) 12.69 W / 15.51 W 13.5 W / 16.5 W 12.6 W / 15.4 W 96 W / 118 W 98 W / 137 W
Heat Dissipation 52.55 BTU/h 56.30 BTU/h 52.55 BTU/h 402.26 BTU/h 467.5 BTU/h
Operating Temperature 32°–104°F (0°–40°C)
Storage Temperature -31°–158°F (-35°–70°C)
Humidity 10%–90% non-condensing
Noise Level Fanless 0 dBA Fanless 0 dBA Fanless 0 dBA 31.56 dBA 31.56 dBA
Operating Altitude Up to 7400 ft (2250 m)
Compliance FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB
Certifications USGv6/IPv6

* Maximum loading on each PoE/+ port is 30 W (802.3at).

                                                          FORTIWIFI 80F-2R FORTIWIFI 81F-2R FORTIWIFI 81F-2R-POE
Hardware Specifications
GE RJ45/SFP Shared Media Pairs 2 2 2
GE RJ45 Internal Ports 6 6
GE RJ45 FortiLink Ports (Default) 2 2
GE RJ45 PoE/+ Ports 6
GE RJ45 PoE/+ FortiLink Ports (Default) 2
Bypass GE RJ45 Port Pair (WAN1 and Port1, default configuration)
Wireless Interface Dual WiFi Radio (5 GHz, 2.4 GHz) 802.11a/b/g/n/ac/ax + 1 Scanning Radio
Antenna Ports (SMA) 3 3 3
USB Ports 3.0 1 1 1
Console (RJ45) 1 1 1
Internal Storage 1x 128 GB SSD 1x 128 GB SSD
Trusted Platform Module (TPM) Yes Yes Yes
Bluetooth Low Energy (BLE) Yes Yes Yes
Radio Specifications
Multiple User (MU) MIMO 2×2
Maximum Wi-Fi Speeds 574 Mbps @ 2.4 GHz, 1201 Mbps @ 5 GHz
Maximum Tx Power 23 dBm @ 2.4 GHz, 22 dBm @ 5 GHz
Antenna Gain 4.5dBi @ 2.4Ghz, 5.5dBi @ 5GHz
System Performance — Enterprise Traffic Mix
IPS Throughput 2 1.4 Gbps
NGFW Throughput 2, 4 1 Gbps
Threat Protection Throughput 2, 5 900 Mbps
System Performance
Firewall Throughput (1518 / 512 / 64 byte UDP packets) 10/10/7 Gbps
Firewall Latency (64 byte UDP packets) 3.23 μs
Firewall Throughput (Packets Per Second) 10.5 Mpps
Concurrent Sessions (TCP) 1.5 Million
New Sessions/Second (TCP) 45 000
Firewall Policies 5000
IPsec VPN Throughput (512 byte) 1 6.5 Gbps
Gateway-to-Gateway IPsec VPN Tunnels 200
Client-to-Gateway IPsec VPN Tunnels 2500
SSL-VPN Throughput 950 Mbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) 200
SSL Inspection Throughput (IPS, avg. HTTPS) 3 715 Mbps
SSL Inspection CPS (IPS, avg. HTTPS) 3 700
SSL Inspection Concurrent Session (IPS, avg. HTTPS) 3 100 000
Application Control Throughput (HTTP 64K) 2 1.8 Gbps
CAPWAP Throughput (HTTP 64K) 9 Gbps
Virtual Domains (Default / Maximum) 10 / 10
Maximum Number of FortiSwitches Supported 24
Maximum Number of FortiAPs (Total / Tunnel Mode) 96 / 48
Maximum Number of FortiTokens 500
High Availability Configurations Active-Active, Active-Passive, Clustering

Note: All performance values are “up to” and vary depending on system configuration.
1 IPsec VPN performance test uses AES256-SHA256.
2 IPS (Enterprise Mix), Application Control, NGFW and Threat Protection are measured
with Logging enabled.
3 SSL Inspection performance values use an average of HTTPS sessions of different
cipher suites.
4 NGFW performance is measured with Firewall, IPS and Application Control enabled.
5 Threat Protection performance is measured with Firewall, IPS, Application Control and Malware Protection enabled

                                                    FORTIWIFI 80F-2R FORTIWIFI 81F-2R FORTIWIFI 81F-2R-POE
Dimensions
Height x Width x Length (inches) 2.4 x 8.5 x 7.0 2.4 x 8.5 x 7.0 2.4 x 8.5 x 7.0
Height x Width x Length (mm) 60 x 216 x 178 60 x 216 x 178 60 x 216 x 178
Weight 3.3 lbs (1.5 kg) 3.3 lbs (1.5 kg) 3.3 lbs (1.5 kg)
Form Factor Desktop/ Wall Mount/ Rack Tray
Operating Environment and Certifications
Input Rating 12V DC, 5A (dual redundancy optional) 12V DC, 5A (dual redundancy optional) +54V DC, 5A (dual redundancy optional)
Power Required (Redundancy Optional) Powered by up to 2 External DC Power Adapters (1 adapter included), 100–240V AC, 50/60 Hz
Maximum Current 115VAC/0.42A, 230VAC/0.21A 115VAC/0.42A, 230VAC/0.28A 115VAC/0.9A, 230VAC/0.6A
Total Available PoE Power Budget* 96W
Power Consumption (Average / Maximum) 22.9 W / 27.9 W 24.79 W / 30.29 W 107.4 W / 131.3 W
Heat Dissipation 95.26 BTU/h 103.29 BTU/h 441.4 BTU/h
Operating Temperature 32°–104°F (0°–40°C)
Storage Temperature -31°–158°F (-35°–70°C)
Humidity 10%–90% non-condensing
Noise Level 24.14 dBA 24.14 dBA 31.56 dBA
Operating Altitude Up to 7400 ft (2250 m)
Compliance FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB
Certifications USGv6/IPv6
                                                     FG-80F-DSL FWF-80F-2R-3G4G-DSL FWF-81F-2R-3G4G-DSL FWF-81F-2R-3G4G-POE
Interfaces and Modules
GE RJ45/SFP Shared Media Pairs 2 2 2 2
GE RJ45 Internal Ports 6 6 6
GE RJ45 FortiLink Ports (Default) 2 2 2
GE RJ45 POE/+ Ports 6
GE RJ45 POE/+ FortiLink Ports (Default) 2
DSL RJ11 Port 1 1 1
Cellular Modem 3G4G / LTE 3G4G / LTE 3G4G / LTE
Wireless Interface Single Radio (2.4GHz/5GHz), 802.11a/b/g/n/ac-W2 Dual WiFi Radio (5 GHz, 2.4 GHz) 802.11a/b/g/n/ac/ax + 1 Scanning Radio Dual WiFi Radio (5 GHz, 2.4 GHz) 802.11a/b/g/n/ac/ax + 1 Scanning Radio Dual WiFi Radio (5 GHz, 2.4 GHz) 802.11a/b/g/n/ac/ax + 1 Scanning Radio
Antenna Ports (SMA) 6 6 6
USB Ports 1 1 1 1
Console Port (RJ45) 1 1 1 1
SIM Slots (Nano SIM) 2 2 2
Internal Storage 128 GB 128 GB
Trusted Platform Module (TPM) Yes Yes Yes
Bluetooth Low Energy (BLE) Yes Yes Yes
System Performance — Enterprise Traffic Mix
IPS Throughput 2 1 Gbps
NGFW Throughput 2, 4 800 Mbps
Threat Protection Throughput 2, 5 600 Mbps
System Performance and Capacity
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) 5 / 5 / 5 Gbps
Firewall Latency (64 byte, UDP) 2.97 μs
Firewall Throughput (Packet per Second) 7.5 Mpps
Concurrent Sessions (TCP) 700 000
New Sessions/Second (TCP) 35 000
Firewall Policies 5 000
IPsec VPN Throughput (512 byte) 1 4.4 Gbps
Gateway-to-Gateway IPsec VPN Tunnels 200
Client-to-Gateway IPsec VPN Tunnels 250
SSL-VPN Throughput 490 Mbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) 200
SSL Inspection Throughput (IPS, avg. HTTPS) 3 310 Mbps
SSL Inspection CPS (IPS, avg. HTTPS) 3 320
SSL Inspection Concurrent Session (IPS, avg. HTTPS) 3 55 000
Application Control Throughput (HTTP 64K) 2 990 Mbps
CAPWAP Throughput (HTTP 64K) 3.5 Gbps
Virtual Domains (Default / Maximum) 10 / 10
Maximum Number of FortiSwitches Supported 8
Maximum Number of FortiAPs (Total / Tunnel) 16 / 8
Maximum Number of FortiTokens 500
High Availability Configurations Active-Active, Active-Passive, Clustering

Note: All performance values are “up to” and vary depending on system configuration.
1 IPsec VPN performance test uses AES256-SHA256.
2 IPS (Enterprise Mix), Application Control, NGFW and Threat Protection are measured
with Logging enabled.
3 SSL Inspection performance values use an average of HTTPS sessions of different
cipher suites.
4 NGFW performance is measured with Firewall, IPS and Application Control enabled.
5 Threat Protection performance is measured with Firewall, IPS, Application Control and Malware Protection enabled



                                                                   FG-80F-DSL FWF-80F-2R-3G4G-DSL FWF-81F-2R-3G4G-DSL FWF-81F-2R-3G4G-POE
Dimensions and Power
Height x Width x Length (inches) 2.4 x 8.5 x 7.0 2.4 x 8.5 x 7.0 2.4 x 8.5 x 7.0 2.4 x 8.5 x 7.0
Height x Width x Length (mm) 60 x 216 x 178 60 x 216 x 178 60 x 216 x 178 60 x 216 x 178
Weight 3.07 lbs (1.39 kg) 3.5 lbs (1.6 kg) 3.5 lbs (1.6 kg) 3.5 lbs (1.6 kg)
Form Factor (supports EIA/non-EIA standards) Desktop / Wallmount (optional)
Input Rating 12V DC, 5A 12V DC, 5A 12V DC, 5A 54V DC, 2.78A
Power Required (Redundancy Optional) Powered by up to two external DC power adapters (one adapter included), 100-240V AC, 50/60 Hz
Current (Maximum) 115Vac/0.9A, 230Vac/0.6A
Total Available PoE Power Budget* 96W
Power Consumption (Average / Maximum) 28.0 W / 31.6 W 28.07 W / 34.31 W 29.2 W / 35.6 W 109.3 W / 133.6 W
Heat Dissipation 108 BTU/h 117.0 BTU/h 121.5 BTU/h 455.6 BTU/h
Operating Environment and Certifications
Operating Temperature 32°–104°F (0°–40°C)
Storage Temperature -31°–158°F (-35°–70°C)
Humidity 10%–90% non-condensing 20%–90% non-condensing 20%–90% non-condensing 20%–90% non-condensing
Noise Level 24.14 dBA 24.14 dBA 24.14 dBA 31.56 dBA
Operating Altitude Up to 7400 ft (2250 m)
Compliance FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB
Certifications USGv6/IPv6
Radio Specifications
Multiple (MU) MIMO N/A 3×3
Maximum Wi-Fi Speeds N/A 1300 Mbps @ 5 GHz, 450 Mbps @ 2.4 GHz
Maximum Tx Power N/A 20 dBm
Antenna Gain N/A 3.5 dBi @ 5 GHz, 5 dBi @ 2.4 GHz
3G4G Modem
Regions Supported N/A All Regions
Modem Model N/A Sierra Wireless EM7565 (2 SIM Slots, Active/Passive)
LTE Category N/A CAT-12
LTE Bands N/A B1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B18, B19, B20, B26, B28, B29, B30, B32, B41, B42, B43, B46, B48, B66
UMTS/HSPA+ N/A B1, B2, B4, B5, B6, B8, B9, B19
WCDMA N/A
CDMA 1xRTT/EV-DO Rev A N/A
GSM/GPRS/EDGE N/A
Module Certifications N/A FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB
Diversity N/A Yes
MIMO N/A Yes
GNSS Bias N/A Yes
xDSL Modem – Supported Mode
VDSL2 N/A
ADSL2 N/A
ADSL2+ N/A
G.DMT N/A
T1.413 N/A
G.Lite N/A
xDSL Modem – Supported Type
Annex A, B, I,J, M & L N/A

* Maximum loading on each PoE/+ port is 30 W (802.3at).

SOLUTIONS
