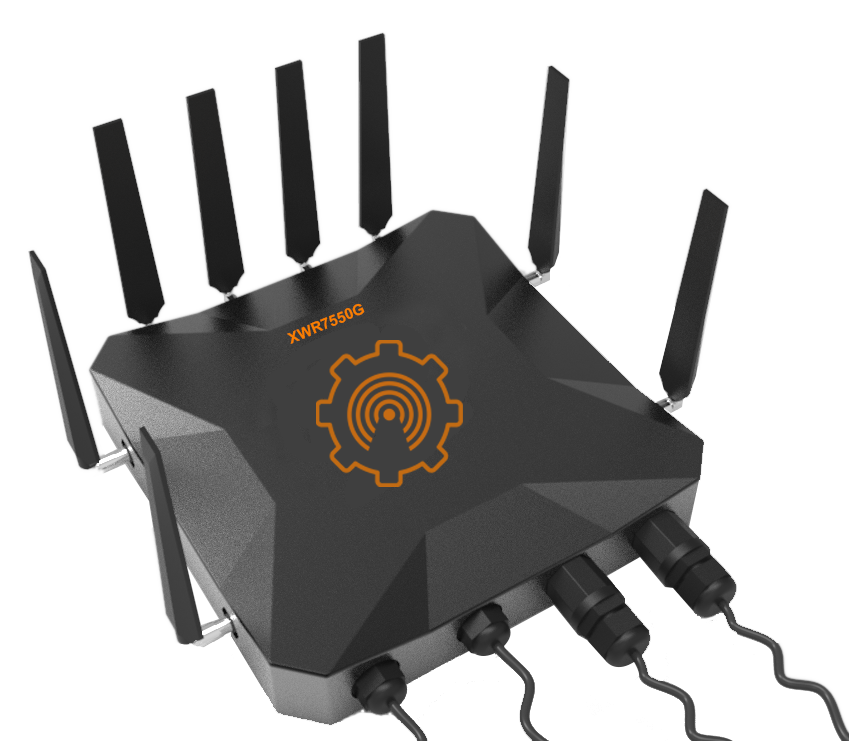

XWR7500G Series

Key Features:

Industrial LTE 5G cellular IP76 Gigabit Router

• High-performance industrial-grade wireless module / 32-bit communication processor
• Metal shell, protection grade IP30. Metal housing and system safety isolation, Wide
power input DC 9~36V
• WDT Watchdog design to ensure system stability
• Adopt a complete anti-drop mechanism to ensure that the data terminal is
always online
• Built-in 1.5KV electromagnetic isolation protection for Ethernet interface RS232/RS485
interface power and data isolation, in line with CSA, UL and IEC standards
• SIM/UIM card interface built-in 15KV ESD protection
• Built-in reverse phase protection and over-voltage protection for power interface
• Standard RS232, RS485, Ethernet and WIFI Interface, Standard WAN port (support
standard PPPOE protocol), which can be directly connected to ADSL equipment
• Intelligent data terminal, can enter data transmission state after power on Easy to
use, flexible, multiple working mode options
• Convenient system configuration and maintenance interface (WEB/CLI) Support wall-
mounted, pole-mounted installation
•Multiple WAN connection methods, include static IP, DHCP, PPPOE, 3G/UMTS/4G/LTE,
DHCP-4G/5G, 3G/4G/5G and wired WAN dual link backup(optional)
• VPN client PPTP/L2TP/IPSEC(only available in VPN version )Remote management
SYSLOG/SNMP/TELNET/SSH/HTTPS
• Support local upgrade and remote upgrade, Import and export configuration files
NTP / Built in RTC
• MAC address clone
• WIFI support 802.11b/g/n/ac, support WIFI AP /AP Client/bridge mode etc.(optional)
• WIFI support WEP/WPA/WPA2 encryption
• Support multiple online and offline trigger modes Support APN/VPDN
• Support DHCP server / DHCP client/DHCP binding MAC/DDNS/NAT/DMZ/QOS
Support TCP/IP/UDP/FTP(Optional)/HTTP and other network protocols
• Support SPI firewall, access control, URL filter, IPV6/IPV4, 5G LAN, lock frequency, lock
resident, EOIP, bridge mode, VxLAN, virtual IP, GRETAP, etc, traffic statistics, VLAN
management, and VLAN division

Product Details

Technical Specifications

Cellular Specification
Module Industrial grade wireless module


Frequency

5G NR: n1/n2/n3/n5/n7/n8/n20/n28/n41/n66/n71/n77/n78/n79

LTE:B1/B2/B3/B4(66)/B5(18/19/26)/B7/B8/B12(17)/B13/B14/B20/B25
/B26/B28/B29/B30/B38/B39/B40/B 41/B42/B43/ B46/ B48/B71

Remarks: Different modules support different network standards



Bandwidth

5G NR:DL 3.4Gbps, UL 350Mbps

LTE Cat20:DL 2.0Gbps,UL 150Mbps
HSPA+:DL 42Mbps,UL 5.76Mbps

Power < 23dBm
Sensitivity <-97dBm
WIFI Specification
Frequency IEEE802.11b/g/n,2.4G,AP mode, Station mode (Option)

IEEE802.11ac, 5.8G, AP mode, Station mode (Option)



Bandwidth

IEEE802.11b/g:54Mbps

IEEE802.11n:300Mbps IEEE802.11ac:866Mbps

Security WEP, WPA, WPA2 encryption,WPS(optional)
Power 26dBm(11b), 21dBm(11ac/MCS7/HT40, 20dBm(11ac/MCS9/HT80)
Sensitive <-72dBm@54Mbps
Hardware System
CPU Industrial-grade 32-bit communication processor
FLASH Nor flash 16MB NAND flash 128MB
DDR3 512MB
Interfaces
WAN 1 x 1000M ETH port (RJ45water proof), auto adapt MDI/MDIX, built in 1.5KV ESD
LAN 1 x 1000M ETH port (RJ45water proof), auto adapt MDI/MDIX, built in 1.5KV ESD


Optical Fiber

1 x 1000M fiber interface (External all-plastic waterproof interface)

Auto adapt MDI/MDIX, built in 1.5KV ESD





Serial

1 x RS232/RS485 serial port (External all-plastic waterproof interface), built in 1.5KV ESD Data bit:5, 6, 7, 8

Stop bit:1,1.5(optional), 2

Check: NONE, ODD, EVEN, SPACE (optional) and MARK (optional) Baud rate:2400~115200bits/s



Indicators

“PWR”, “SYS”, “2.4G”,”5.8G”, “Online”,”Signal”

Remarks: Built-in indicator light



Antenna

Cellular:4 x waterproof SMA female antenna, characteristic impedance 50 ohms

WIFI:4 x waterproof SMA male antenna, characteristic impedance 50 ohms

SIM/UIM Standard drawer type, 1.8V/3V SIM/UIM card, built-in 15KV ESD protection
Power Terminal interface, built-in power reverse protection
USB USB2.0 (Built-in)
Reset button Through this button, the parameter configuration can be restored to the factory
Power Supply
  Standard DC 12V/1.5A and Support POE (802.3af) power supply
   Range DC 9~36V
  Consumption <1.2A (12V)
Physical Properties
  Shell Metal shell, protection grade IP68


  Size

259x259x45 mm

(Does not include antenna and mounting parts)

  Weight 2480g
Others
  Operating Temperature -35~+75ºC(-31~+167℉)
  Storage Temperature -40~+85ºC(-40~+185℉)
  Relative Humidity 95% (No condensation)
